다이아프램 정량펌프
상세 내용
업체명 | 동일엠티(주) | ||
---|---|---|---|
제품명 |

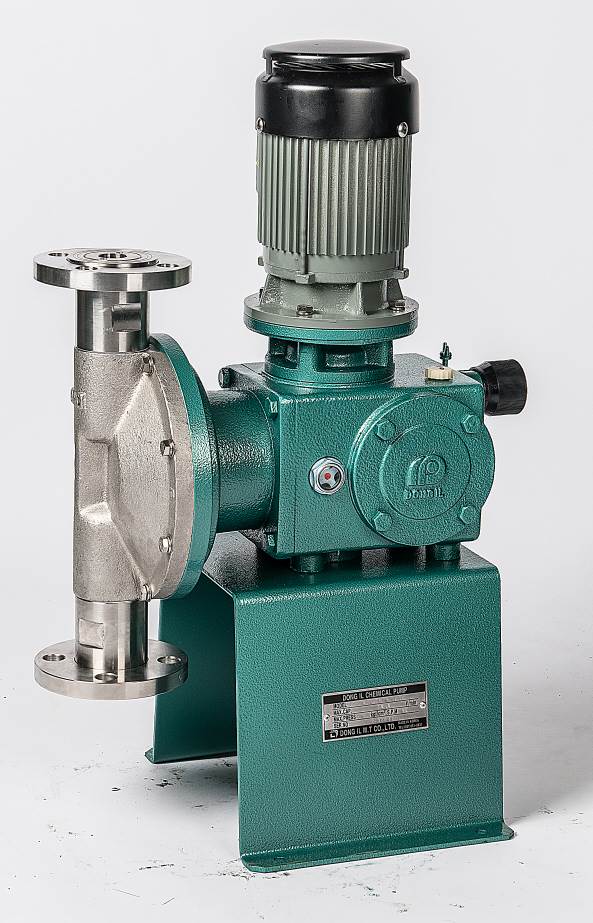

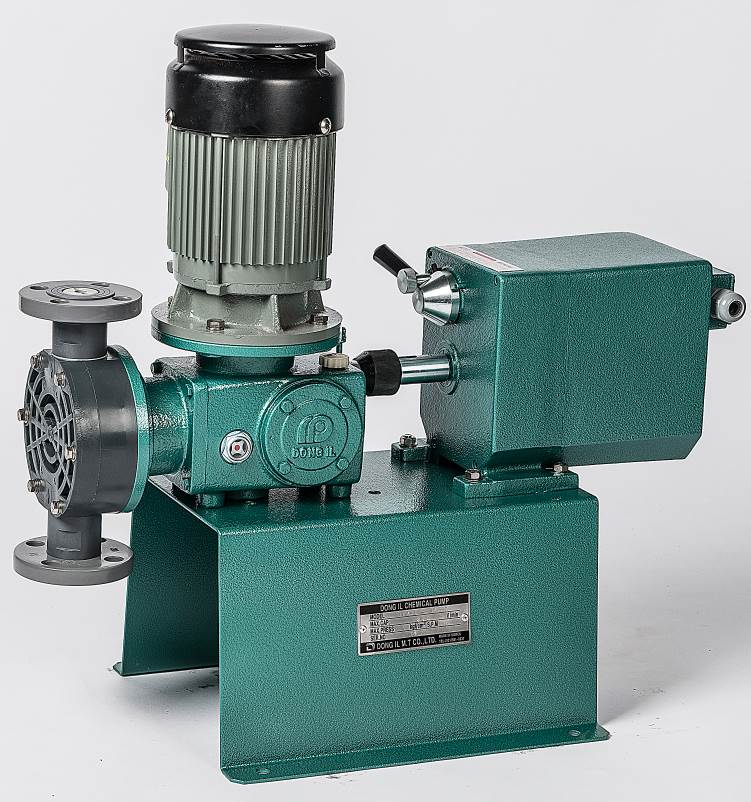

다이아프램 정량펌프
|
||
모델명 | DW series | ||
HS코드 | 8413.50.9030 | ||
특징 |
The motor is 3 phase, 220/380v. The type is diaphragm metering pump. According to fluid type, material of head can be changed such as PVC, SUS304, 316, TEFLON, PVDF. The range of capacity is from 50cc/min to 35000cc/min, but attach the head one more in parallel, capacity might be double. Features: 1) Steady seller, it has been sell above 40,000 since launching the product. 2) Reliable, Accuracy, Wonderful design, Depends on operation circumstances, it works more than 10 years. 3) It is possible to attach pump head in parallel, so that the capacity is double. It can be overcome the limit maximum capacity. 4) It is possible to adjust capacity automatically by attaching SERVO UNIT which gets information from PH meter. Spac.: 1) Discharge capacity : 50cc/min ~ 50L/min(in case of duplex head, please refer to figure 2) 2) Material : PVC,SUS304,SUS316,TEFLON,PVDF 3) Motor : 3 phase, 60Hz,220/380v,IP44(standard) 440V,50Hz, anti-explosion, waterproof motor in special order 4) 30% ~ 100 % adjust flow capacity 5) viscosity : below 1000cp 6) operation temperature: PVC(0~50), SUS(0~80) 7) connecting type: flange(standard), hose(optional) |
||
키워드(태그) |
분야
분야 |
---|
물관리 > 상수공급 > 정수 > 표준 정수처리 |
물관리 > 하폐수처리 > 하수 > 전처리 |
물관리 > 하폐수처리 > 폐수 > 전처리 |
물관리 > 하폐수처리 > 폐수 > 화학적 본처리 |
인증
인증종류 | 취득연도 | 인증종류 | 취득연도 |
---|---|---|---|
ISO9001 | CE |
공급실적
기간 | 납품처 | 납품량 |
---|---|---|
데이터가 없습니다. |
최근 업데이트 날짜 : 2023-12-05
